Today I want to talk most how to alter the unit system in SOLIDWORKS. Before you lot can acquire how to change the unit systems in SOLIDWORKS you should know how information technology stores and uses the unit organisation. If you want to skip by the background info and go straight to customizing or changing the unit system in SOLIDWORKS, click here.
Access the unit arrangement in SOLIDWORKS

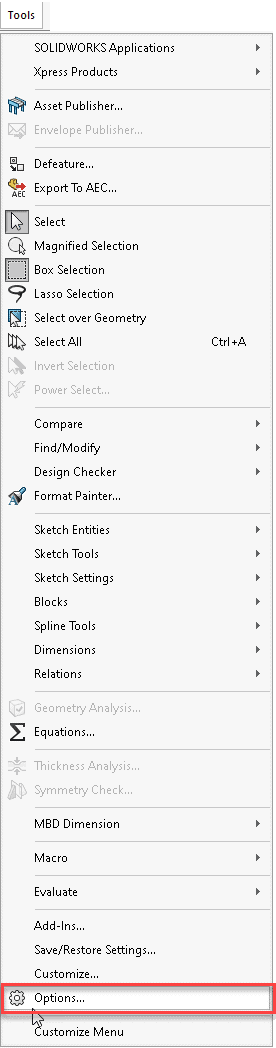

The unit organization is stored in the System Options – Document Properties tab – Units. There are 2 ways to access the System Options. The first way is to use the card Tools – Options.

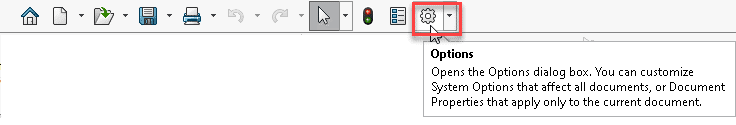

The 2nd is to click on the Options Icon from the Quick first toolbar.

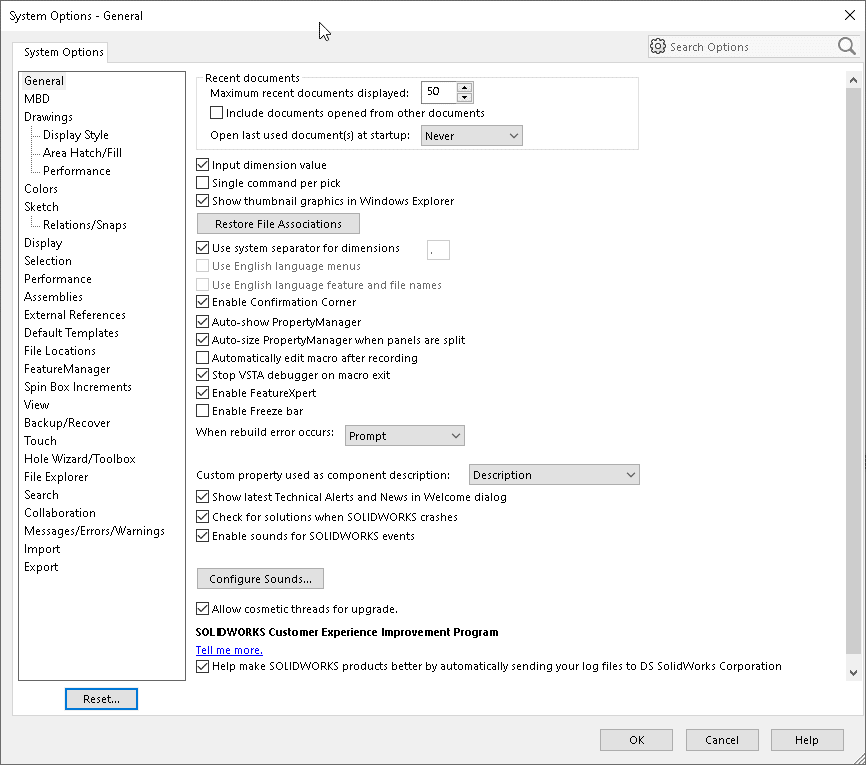

One time the organization options dialog is open it will wait like this:

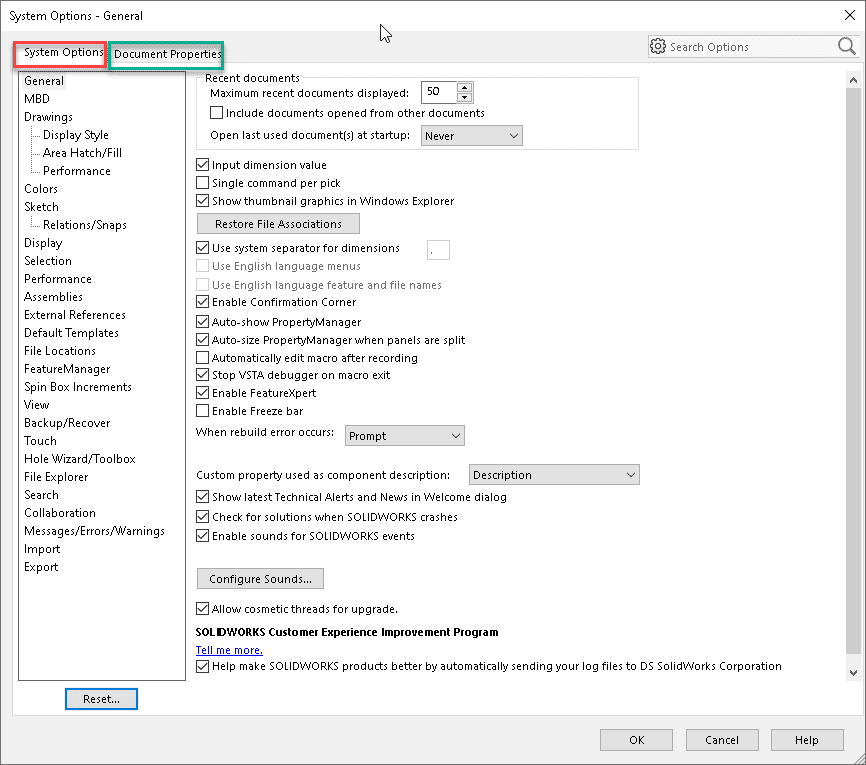

At that place is only one tab to select because there are no SOLIDWORKS documents open. When in that location is file open in SOLIDWORKS information technology will look similar this:

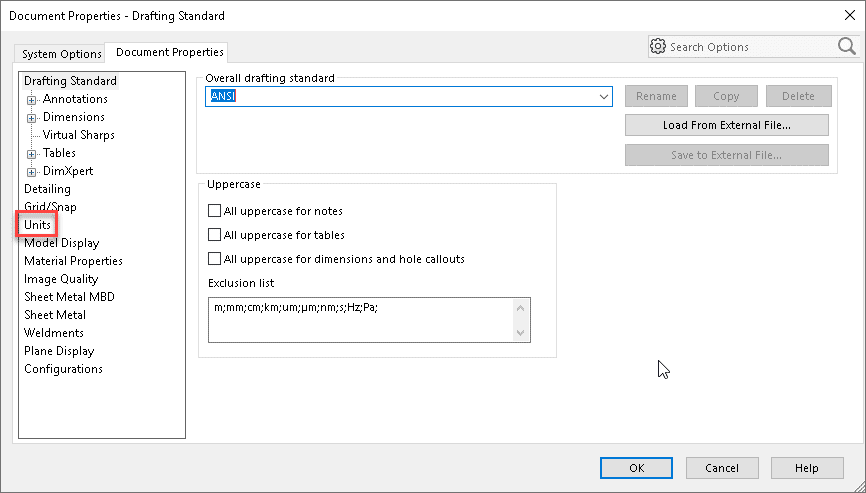

Now, click on the Certificate Backdrop tab and you will see this listing of items.

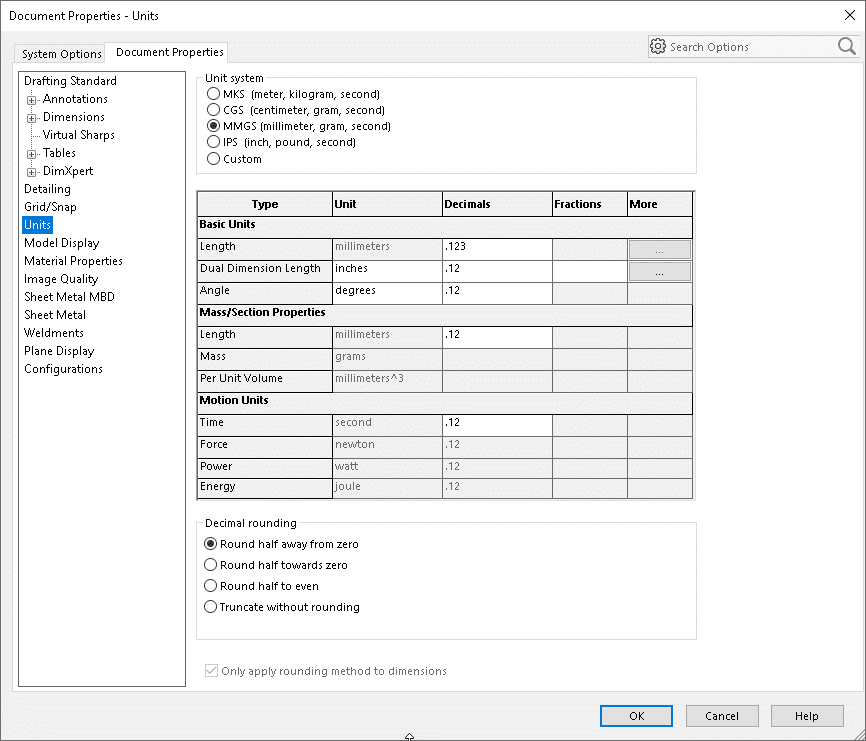

Click on the Units Item and it will wait like this.

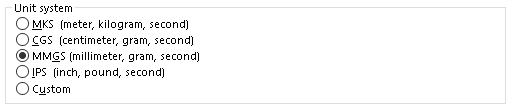

The Unit System at the top will gear up measurement and dimensional and property units based on those listed.
NOTE: the underlined characters represent hot-keys that may be used with the "Alt" key to make selections (in this case Alt-g selects, "MMGS").
In this case they are set up to MMGS (millimeter, gram, second).

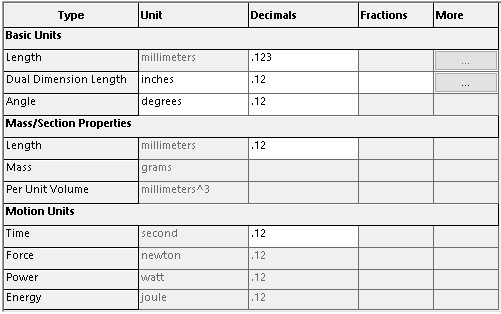

This volition also set up the defaults for Basic Units, Mass/Section Backdrop and Motion Units. Likewise every bit allowing the specification of precision, and culling Dual Dimension Length and Angle.

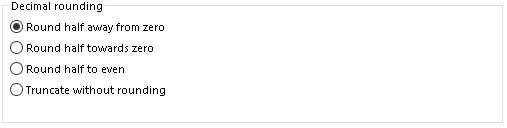

The last section applies to the decimal rounding method for dimensions.
If you want to create a dimension system that is other than those listed in the standards, select Custom. The Units area will become unshaded, and a dropdown will be available.
Select the units so ready the decimal precision. If you select Inches, or feet and inches, and none for "Decimals" the area nether "Fractions" volition clear and you will exist able to add a number for the denominator of the fractional unit (like 16 or 32). Nether the More column click and select whether you would similar the number to be rounded the nearest fraction or the format changed.
The next department of the Unit Organization is Mass/Department Properties, and the units volition be ready automatically based on the top 4 Unit system choice. But for the Custom unit organisation the Mass/Section Properties will be bachelor for change.

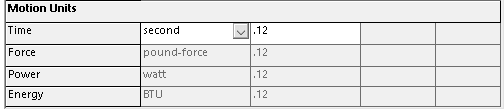

The concluding section, Move Units will be mostly predefined based on the last selection from the first four unit systems, so for the custom unit organization you may select a new time unit.
One time you set your preferences for the Unit system, click on OK and the units will be set up for that certificate.
Capture unit changes with SOLIDWORKS templates
All the settings established in the Document Properties tab of the arrangement Options dialog may exist modified for the current document. If yous want a Part, Assembly, or Drawing document to be created with a item Unit of measurement System yous will need to create a template for each Part, Assembly, and Cartoon certificate with a specific Unit system for each.
At present that we have discussed the options that can be changed in the Document Backdrop that will bear on your Office, Assembly, and Drawing documents, we volition go into creating templates to capture those changes.
First yous will need to create a new part. Y'all may click on the File – New carte du jour item, the New button

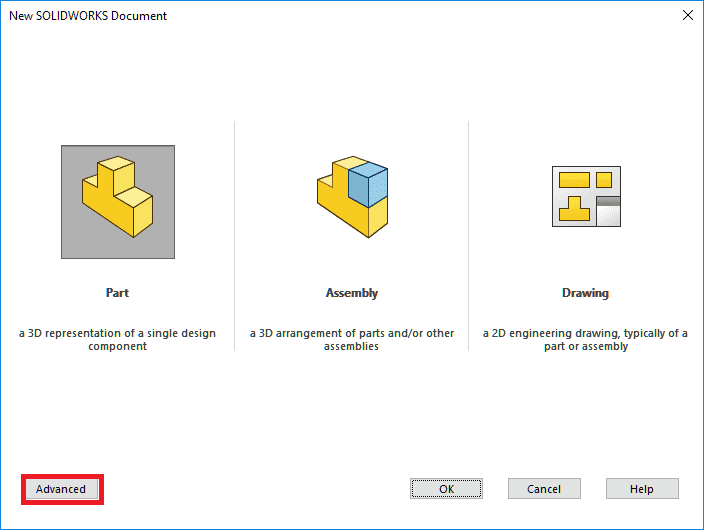

in the Standard Tool Bar, or apply the shortcut Ctrl-Due north. If the new part dialog look similar this:

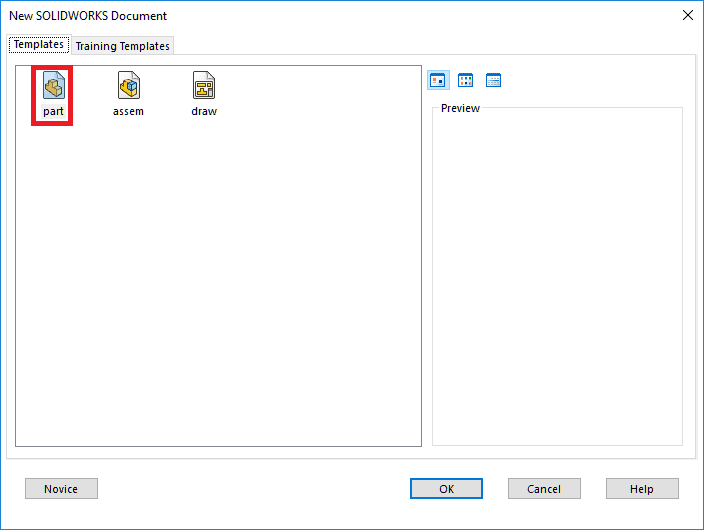

Click on the Advanced push in the lower left corner, so select the Part template and click OK.

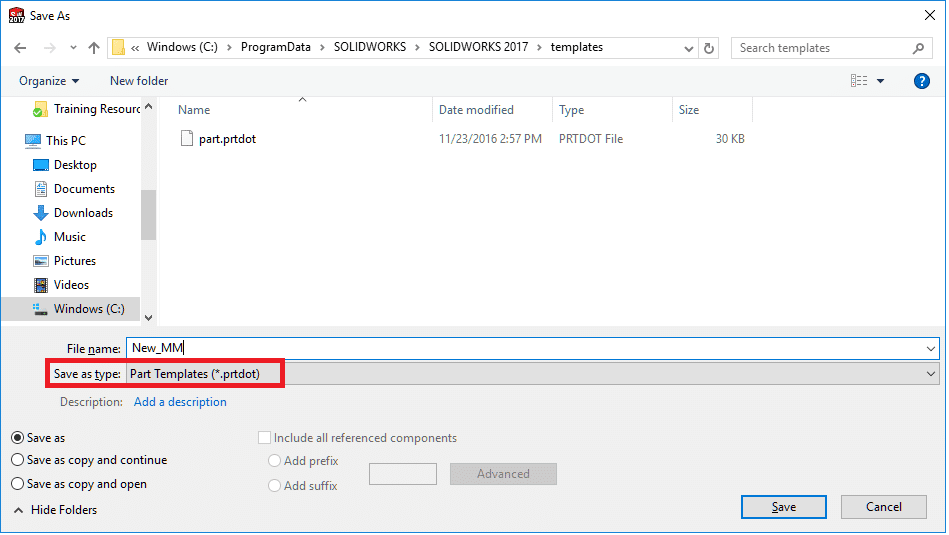

From hither you should open the System Options – Document Backdrop tab and go though the Drafting standard and Unit of measurement Arrangement settings for the new template you want. Then FILE – SAVE AS. When the dialog box appears, the blazon should be changed to PART TEMPLATE
This volition change the directory location automatically to your DOCUMENT TEMPLATES FILE LOCATION. It is a good idea to save your custom templates to a binder that is not part of the standard SOLIDWORKS installation location. Requite your template a descriptive name.
To examination the settings, utilize the template you only saved to create a new document.
The procedure for creating an associates template is the same. Start with a new assembly, modify the certificate properties, and salve the template into the correct file location.
Repeat the process for a ne Drawing Template also.
Quick change to document units in SOLIDWORKS
So, now comes the piece of cake answer to the question "How do I change the document units?" If you go back to hither you lot can follow the process to change the units in the OPTIONS area.

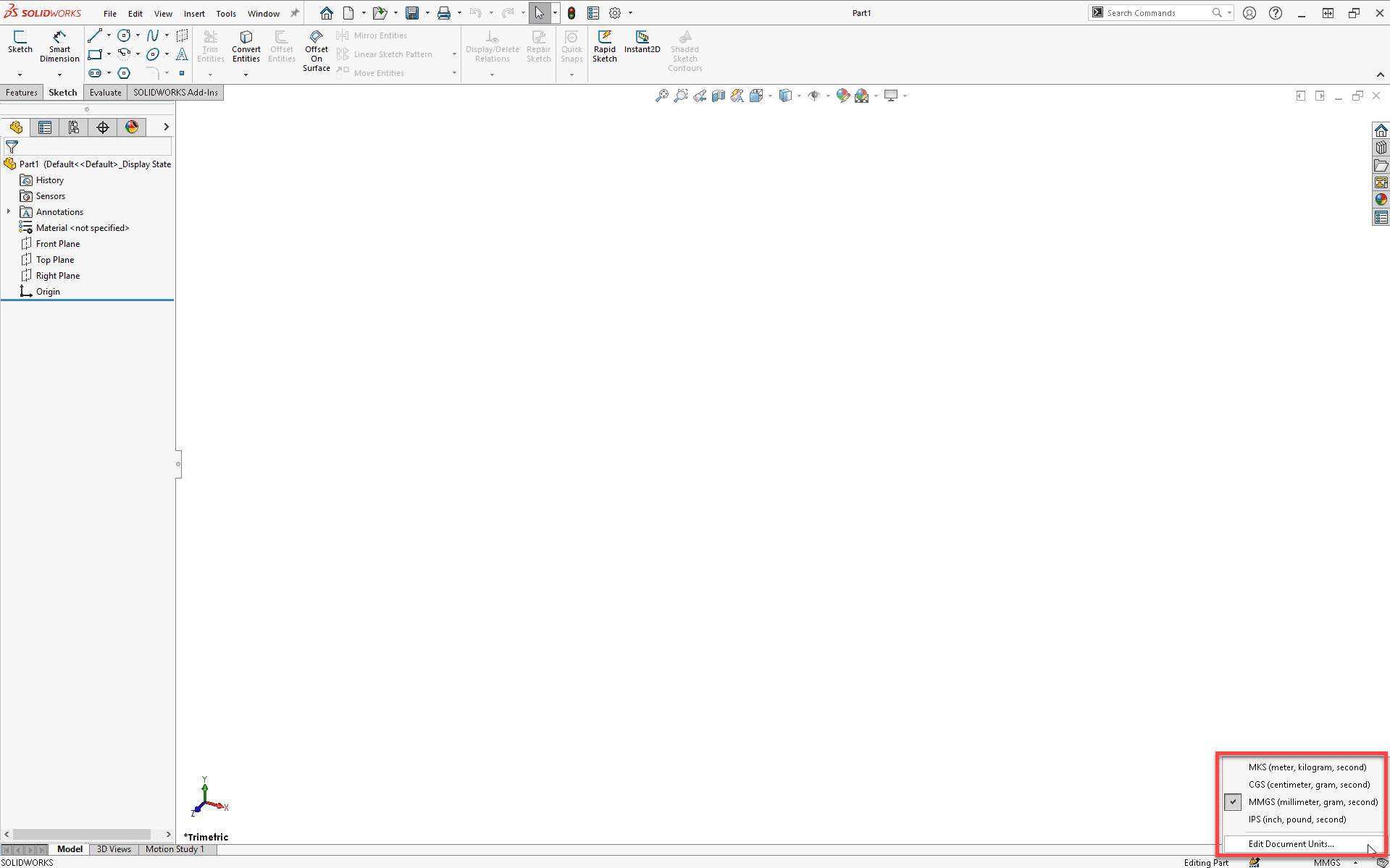

Or, to change the unit system simply and apace there is a popular-up menu in the lower right corner of the applications window.
Or to see it magnified.
Just selection the unit arrangement y'all want for this certificate and use it going forward for all measurement and dimensions.

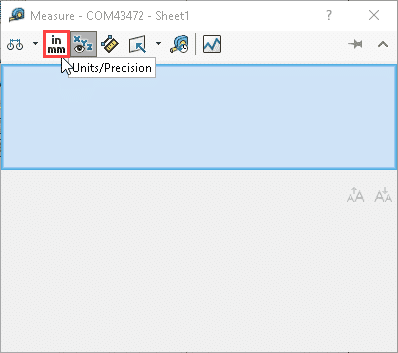

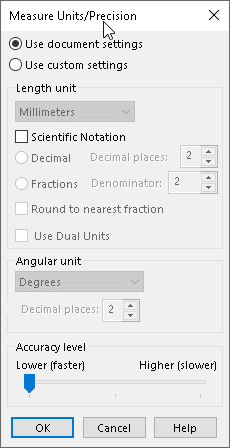

To alter the units in the Measure Tool:
Select the Units/Precision Icon
Select "Apply custom settings" to brand the measure tool use unlike units.

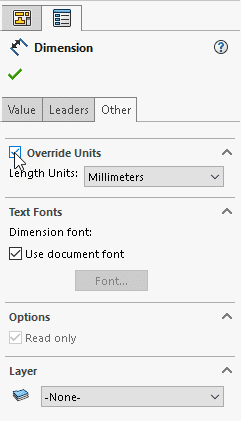

To change the units for a single dimension in a Drawing:
Create a drawing of a part and add together dimensions using Smart Dimension or Model Items. Select the dimension to change and click on the "Other" tab of the Dimension Properties. Place a checkmark in the Override Units option box and use the dropdown to change the units for the dimension.
Now you lot have the freedom and know how to change the units for all your SOLIDWORKS design projects. I hope you have enjoyed this blog article.
Until side by side fourth dimension,
Dennis Barnes
Application Engineer, Software Back up
Computer Aided Applied science
